• 4-Wheel Antilock Brake Sys
• 5G Modem
• Forward Collision Warning
• Front Parking Sensors
• Keyless Entry W/Push Start
• Lane-Keeping System/Alert
• Power Locks And Windows
• Pre-Collision Assist W/Aeb
• Rear Parking Sensors Kit
• Rear View Camera Kit
• Sync4 W/12" Screen
• Veh Integration Sys 2.0

• 8" Cluster Display
• A/C Climate Control
• Accessory Turn-Off Delay
• Assist Handles - A-Pillar
• Center Console
• Dual Sunvisors
• Dual Usb
• Locking Glove Box
• Powerpoint - 12V (Front)
• Steering:Tilt/Telescope, Cruise & Audio Controls

• Advancetrac With Rsc
• Airbags - Safety Canopy
• Driver/Passenger Air Bags
• Perimeter Alarm
• Rear High Mount Stop Lamp
• Securilock Anti-Theft Sys
• Sos Post-Crash Alert Sys
• Tire Pressure Monit Sys

Cutaway (501A)

Interior Upgrade Package

Tow/Haul Mode with Trailer Wiring Provisions

Ford Co-Pilot360® (Chassis Cab/Cutaway)

Ford Security Package

Exterior Upgrade Package – SRW

• ORDER CODE 501A

• Electrical
• Maximum Alternator Capacity (amps): 250
• Weight Information
• Base Curb Weight (lbs): 4223
• Gross Axle Wt Rating - Front (lbs): 4130
• Gross Axle Wt Rating - Rear (lbs): 5750
• Curb Weight - Front (lbs): 2971
• Curb Weight - Rear (lbs): 1252
• Gross Vehicle Weight Rating Cap (lbs): 9500
• Gross Combined Wt Rating (lbs): 12000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 6700
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 670
• Maximum Trailering Capacity (lbs): 6700
• Suspension
• Suspension Type - Front: Strut
• Suspension Type - Rear: Leaf
• Axle Type - Front: Independent
• Axle Type - Rear: Rigid Axle
• Axle Ratio (:1) - Front: 4.10
• Axle Ratio (:1) - Rear: 4.10
• Brakes
• Brake Type: 4-Wheel Disc
• Brake ABS System: 4-Wheel
• Brake ABS System (Second Line): 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.1
• Rear Brake Rotor Diam x Thickness (in): 12.1
• Tires
• Front Tire Size: LT235/65RR16
• Rear Tire Size: LT235/65RR16
• Revolutions/Mile @ 45 mph - Front: 720
• Revolutions/Mile @ 45 mph - Rear: 720
• Wheels
• Front Wheel Size (in): 16 X 6.5
• Rear Wheel Size (in): 16 X 6.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Steering
• Steering Type: Rack-Pinion
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 25.1
• Exterior Dimensions
• Wheelbase (in): 138
• Length, Overall (in): 223.3
• Width, Max w/o mirrors (in): 80.8
• Height, Overall (in): 87.3
• Overhang, Front (in): 40.3
• Overhang, Rear w/o bumper (in): 45.1
• Cab to Axle (in): 82.6
• Cab to End of Frame (in): 127.7
• Ground Clearance, Front (in): 5.5
• Ground Clearance, Rear (in): 5.5
• Interior Dimensions
• Passenger Capacity: 2
• Front Head Room (in): 44.9
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 67.9
• Front Hip Room (in): 60.7
• Summary

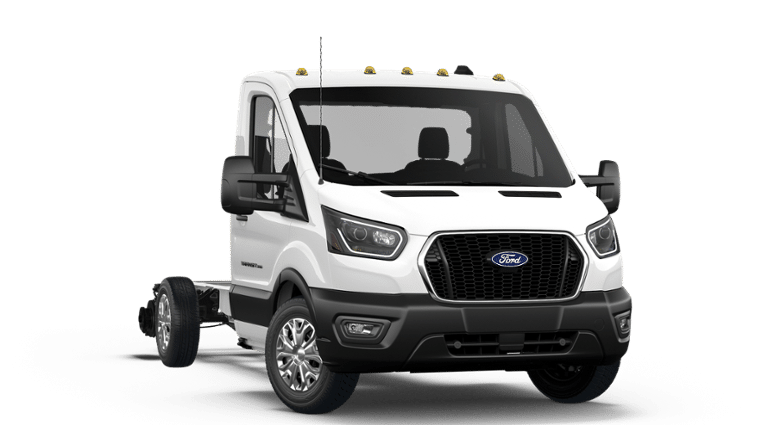

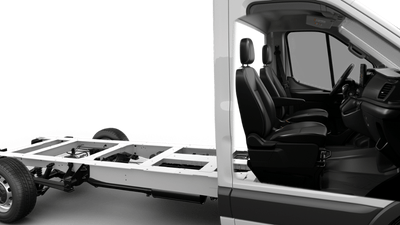

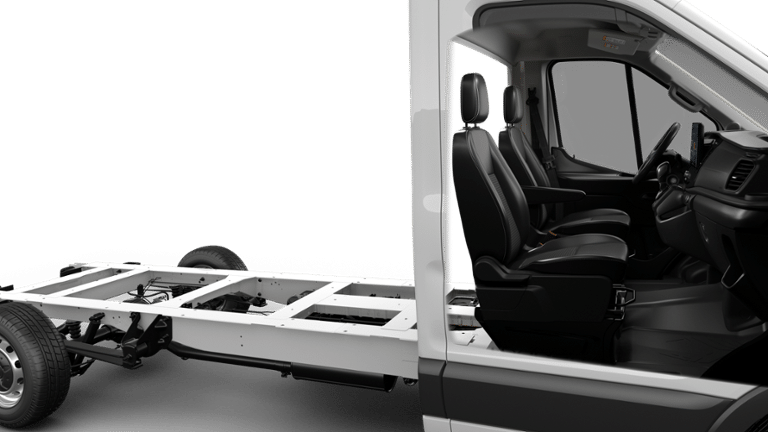

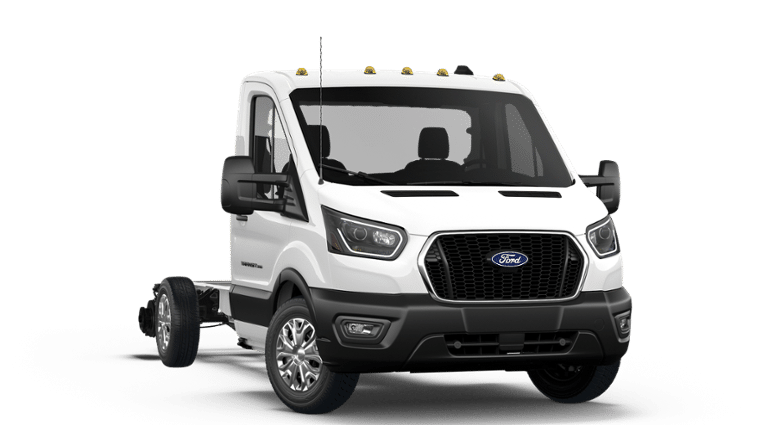

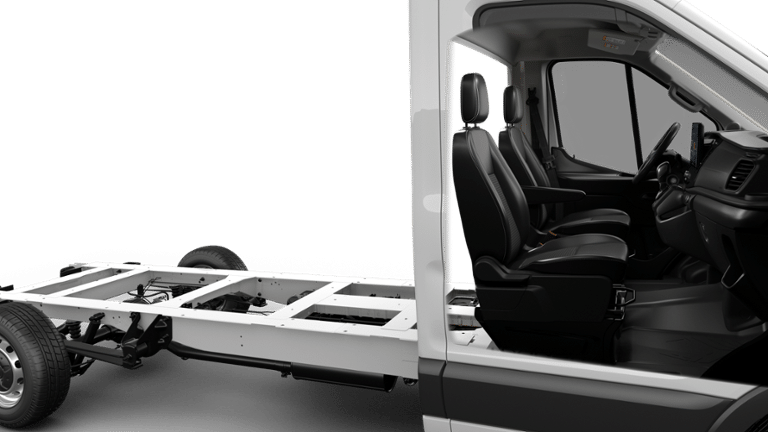

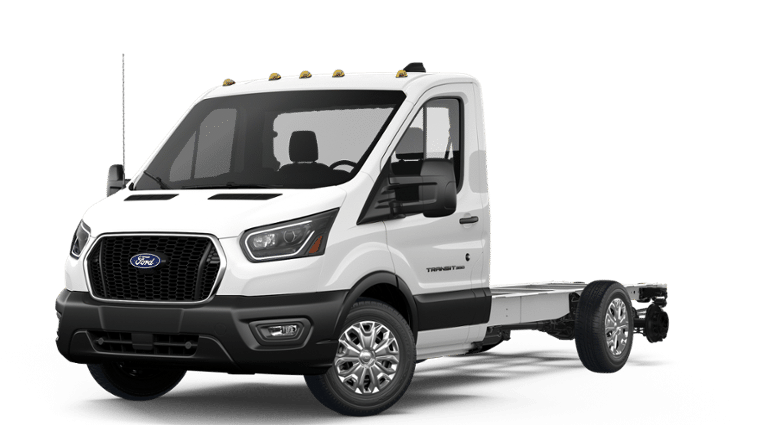

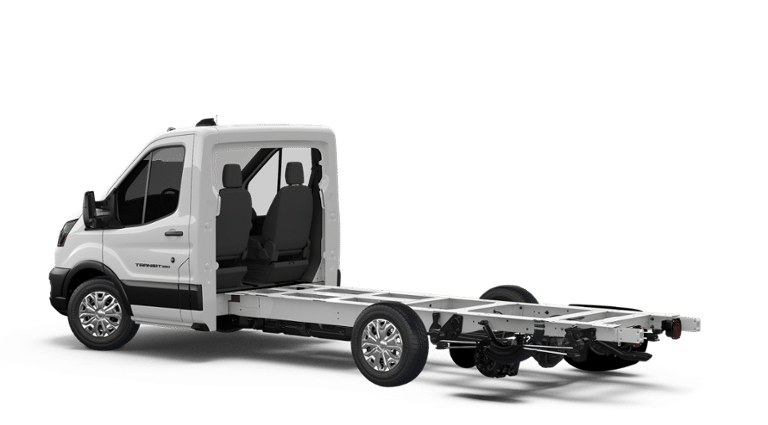

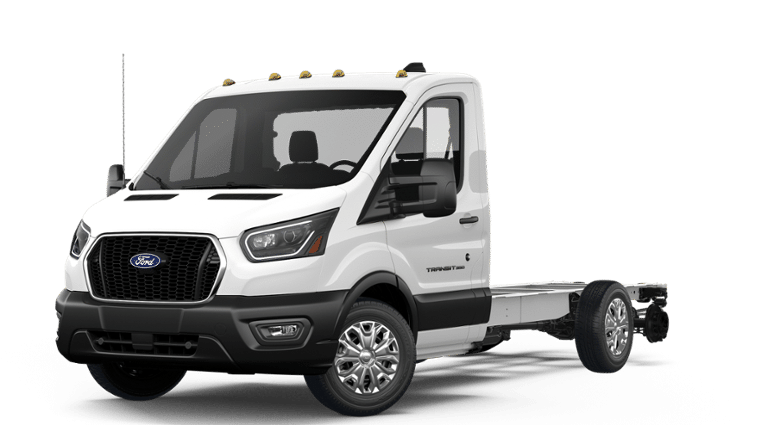

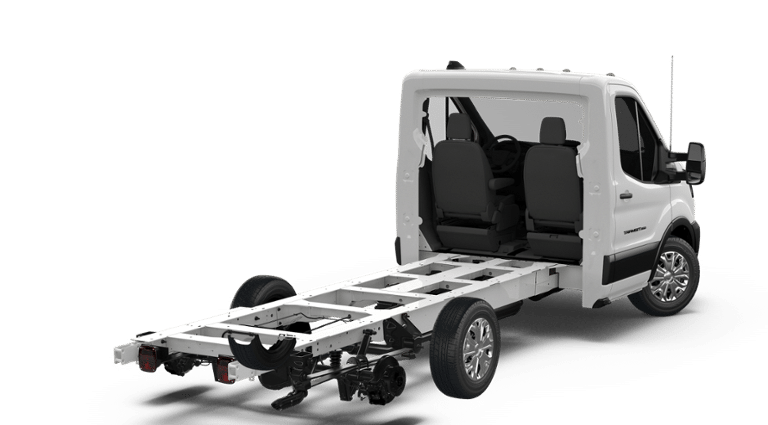

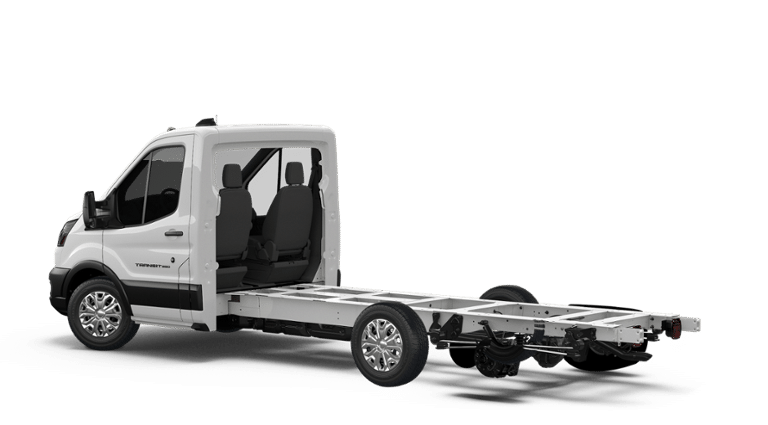

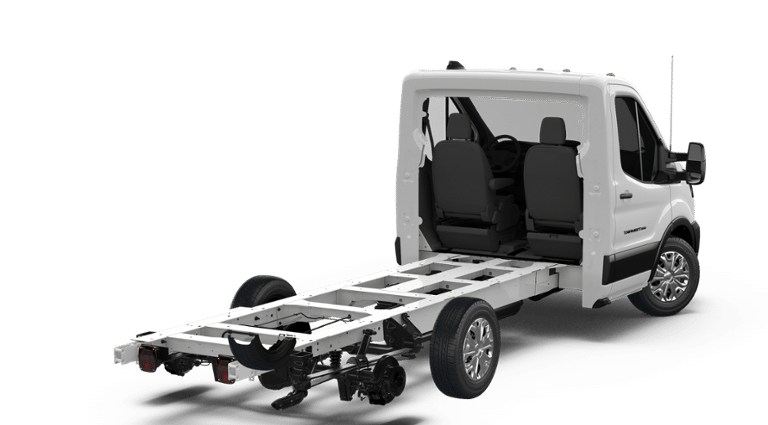

• Vehicle Name: Ford Transit Cutaway
• Body Style: Chassis
• Body Code: H
